Speed Bleeders, that was easy....

Collapse
X
  •
  • Filter
  • Time
  • Show
Clear All
new posts

  • Speed Bleeders, that was easy....

    My Wing is a 2008 that I bought new in 2010. A couple of years ago I bought 4 packs of Speed Bleeders, two per pack, to replace the 7 bleed nipples for the brake system.

    These sat on a shelf and got lost in my move from TN to TX.

    A couple of weeks ago I came across them and laid them out where I could find them, just in case I got into that procrastination state again.

    A few weeks ago, I helped Kevin (MisterK) bleed his brakes and without the Speed Bleeders it really was a two person operation.

    I decided to get the Russell 639500 Speed Bleeder bag. This was well worth the $12.50 shipped from Amazon Prime. This gave me the extra pair of hands. the hose that comes with the bag is stretchy and fits over the bleed nipples perfectly and stays on.


    So I went around the bike replacing each OEM bleed nipple in the order the the bleed procedure is performed.

    I lost only a tiny bit of brake fluid, a couple of drops from only a couple of the bleed nipples.

    I then proceeded to bleed each new Speed Bleeder nipple, topping off the front brake or rear brake reservoir until I could see the new fluid coming out into the catch bag. The color of the original fluid was quite orange and the new fluid was clear.

    Using the speed bleeder bag, I could position it in a spot where I could see the bag and hose while I worked either the front or rear brake lever and kept an ey on the reservoir levels.

    Taking my time, swapping out the 7 OEM bleed nipples probably took me about 7 minutes. Bleeding the new 7 Speed Bleeders probably took about 12 minutes.



    Here's the Bleed Sequence

    1) Using the Front Brake Lever - Front Right caliper Upper bleed nipple
    2) Using the Front Brake Lever - Front Left caliper Lower bleed nipple
    3) Using the Rear Brake Pedal - Front Left caliper Upper bleed nipple
    4) Using the Rear Brake Pedal - Front Right caliper Lower bleed nipple
    5) Using the Rear Brake Pedal - Rear caliper Lower bleed nipple
    6) Using the Rear Brake Pedal - Anti Dive plunger
    7) Using the Rear Brake Pedal - Rear caliper Upper bleed nipple



    '08 Goldwing Lvl 3
    '12 Aprilia Tuono V4 APRC
    '08 KTM 300XCW
    '07 Ducati 1098S
    www.gl1800visor.com

  • #2
    I love my Speed Bleeders.
    GOLDWING AND F6B MAINTENANCE VIDEOS
    Save $1000 a year in labor by doing your own maintenance!

    Website | YouTube | 2001-2017 Videos | 2018+ Videos

    Comment: (For off-topic replies)


    • #3
      What size do we require ?
      2013 Black F6B

      Comment: (For off-topic replies)


      • #4
        I believe it is the size ChrisE mention in his first post. SB8125L
        Northeast, Alabama
        1995 GL1500, 2004 GL1800 & 2007 Aero 750

        Comment: (For off-topic replies)


        • #5
          Best thing since sliced bread..

          Comment: (For off-topic replies)


          • #6
            Ordered mine from Buldog this past summer. Will install & bleed the brakes/clutch over winter sometime along with my other maintenance.

            Thanks for the write up,
            Dan
            2007 dark blue Navi
            Traxxion "Mega Monty"
            IBA 54656

            Comment: (For off-topic replies)


            • #7
              Is the clutch bleeder the same size?
              2013 Black F6B

              Comment: (For off-topic replies)


              • #8
                Originally posted by JeffP View Post
                Is the clutch bleeder the same size?
                Yes it is. So buy 4 packs of two and you'll be able to do all of them.

                Here's their fitment chart. It's a bit out of date. I don't believe the bleed nipples changed on the newer years.
                http://www.speedbleeder.com/Motorcyc...izes.htm#Honda
                '08 Goldwing Lvl 3
                '12 Aprilia Tuono V4 APRC
                '08 KTM 300XCW
                '07 Ducati 1098S
                www.gl1800visor.com

                Comment: (For off-topic replies)


                • #9
                  I think it is, but you will need to do some work on the metal bracket that is in front of the clutch bleeder (at least I had to)...on mine the speed bleeder stuck out far enough to hit the bracket.

                  Comment: (For off-topic replies)


                  • #10

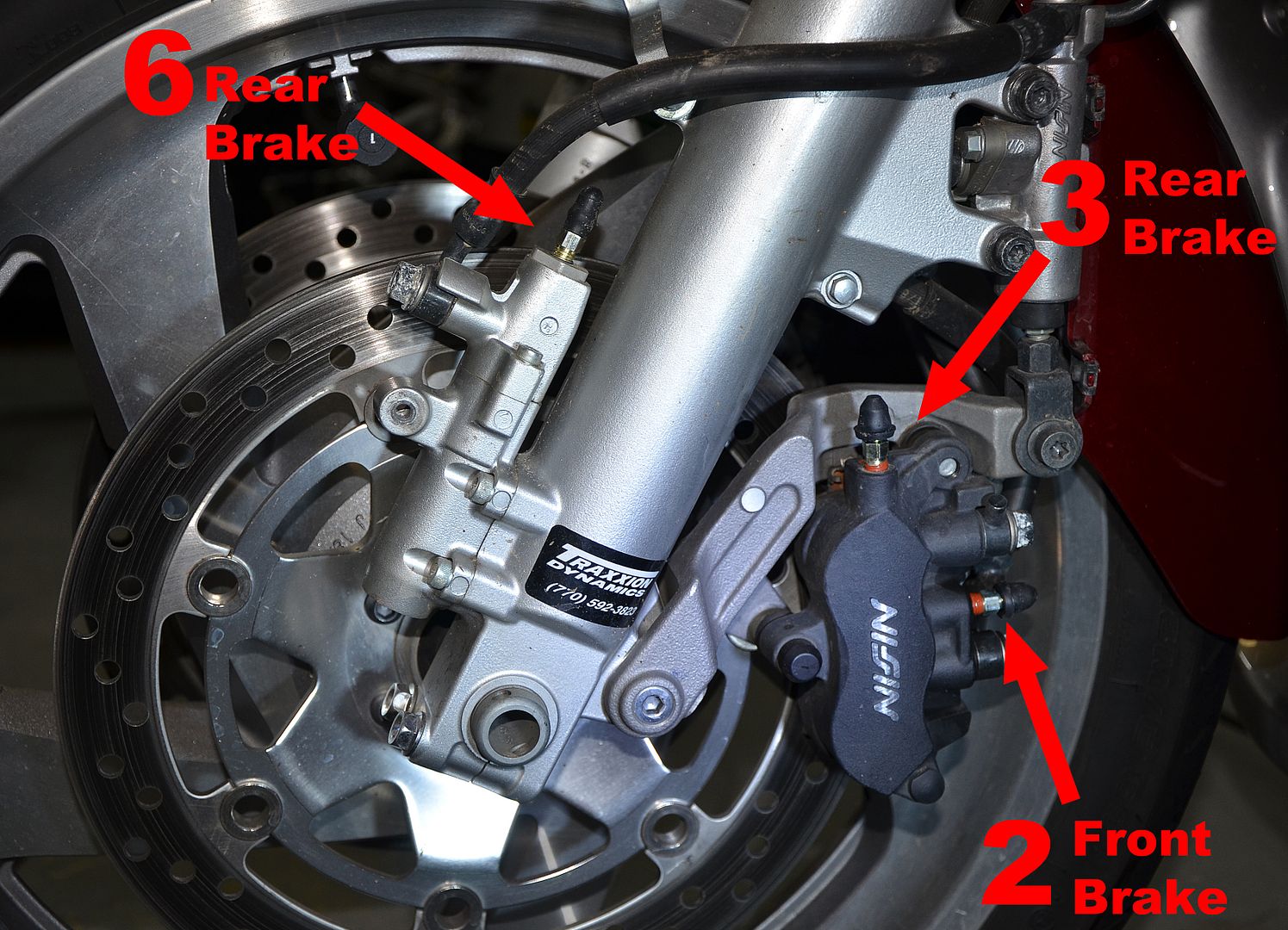

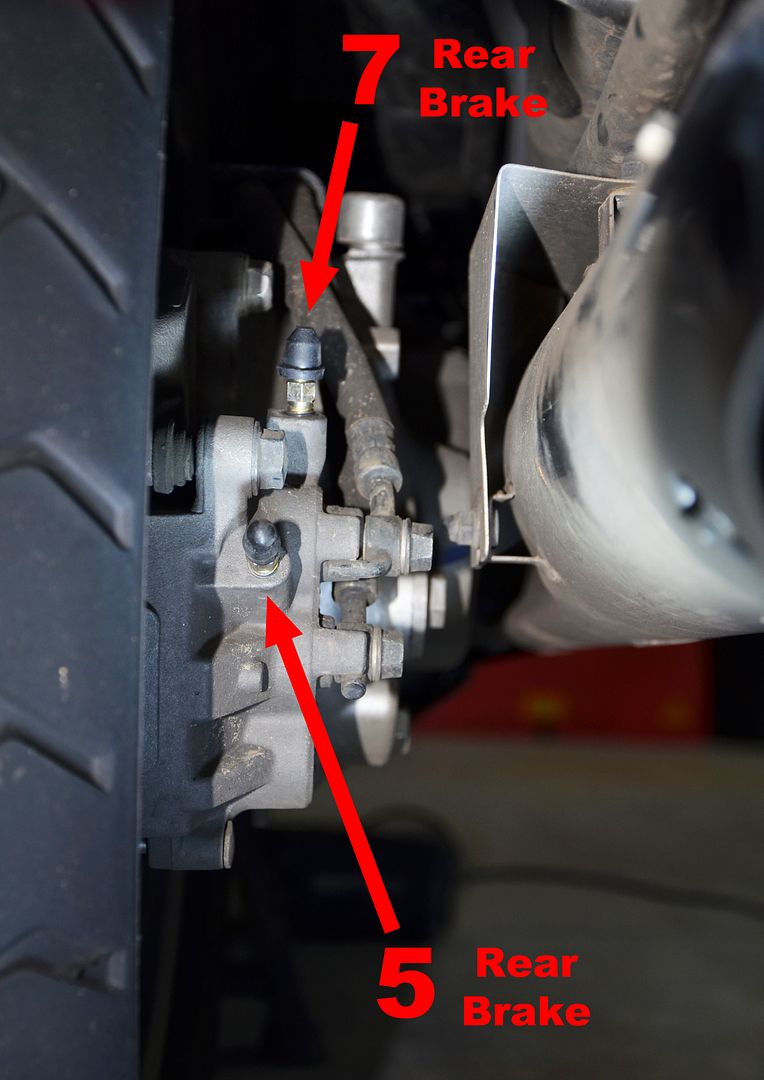

                    I took some pictures of the bleed sequence indicating which pedal is used.




                    '08 Goldwing Lvl 3
                    '12 Aprilia Tuono V4 APRC
                    '08 KTM 300XCW
                    '07 Ducati 1098S
                    www.gl1800visor.com

                    Comment: (For off-topic replies)


                    • #11
                      Originally posted by Haste Maker View Post
                      I think it is, but you will need to do some work on the metal bracket that is in front of the clutch bleeder (at least I had to)...on mine the speed bleeder stuck out far enough to hit the bracket.

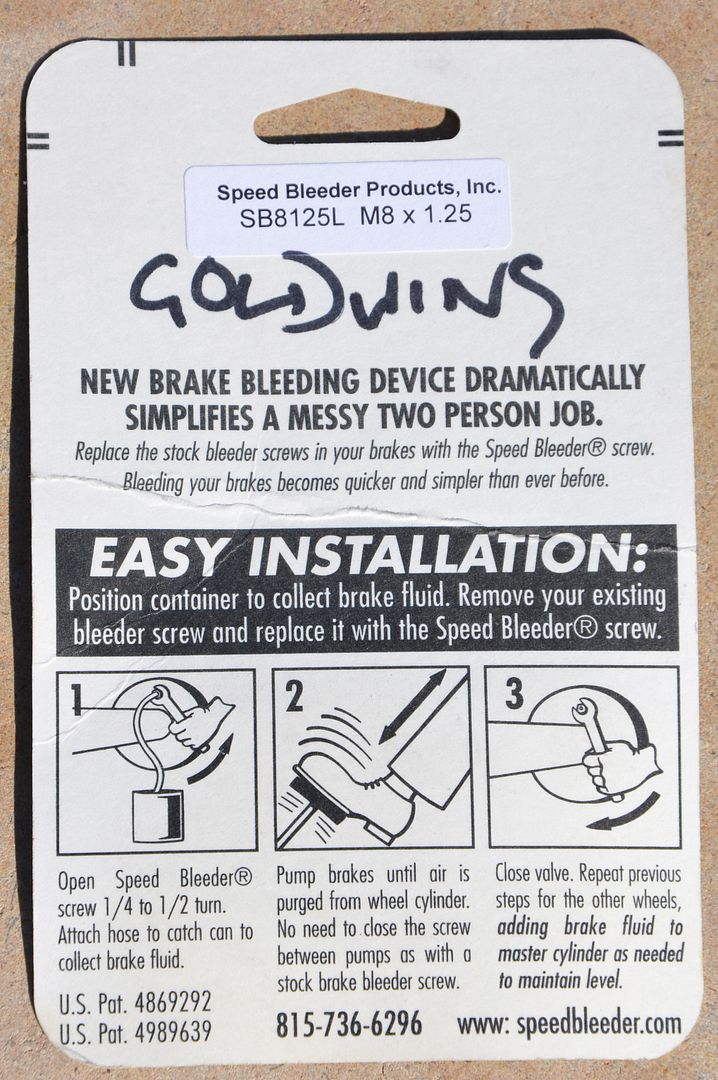

                      I just got off the phone with Bulldog......I ordered 8 SB8125L.......Bulldog said he is shipping 7 SB8125L's and a shorter one to use on the clutch...

                      Once again, dealing with a guy that knows his stuff I won't have to re-work the metal bracket for the clutch bleeder to fit.

                      Comment: (For off-topic replies)


                      • #12
                        Is there any advantage to using Teflon tape on the threads? I want to put speed bleeders on my bike, have always used a Mityvac in the past and sucking air has sometimes been a problem. Maybe when the fluid is pushed out instead of being pulled out air around the threads isn't a problem.

                        Comment: (For off-topic replies)


                        • #13
                          Originally posted by J.C. View Post
                          Is there any advantage to using Teflon tape on the threads? I want to put speed bleeders on my bike, have always used a Mityvac in the past and sucking air has sometimes been a problem. Maybe when the fluid is pushed out instead of being pulled out air around the threads isn't a problem.

                          Can't answer on Teflon tape.......However, Bulldog sells a thread compound, that he recommends using with speed bleeders......Go to his website and click on speed bleeders and it is listed there.

                          Comment: (For off-topic replies)


                          • #14
                            Got a link to Bulldog's site? Just a tip on the SpeedBleeders, I put them on my VT1300 last year after changing the brake lines to stainless braided and had lot's of issues and swearing as I could not get any fluid flowing. They will not work on a empty line or caliper. I ended up putting the stock bleeders back on and using my MityVac to flush and bleed the brakes. After all was good I reinstalled the SpeedBleeders and they worked fine.
                            2013 Black F6B

                            Comment: (For off-topic replies)


                            • #15
                              The easiest way to bleed a new brake line is to reverse bleed it with a device like the Phoenix V5 http://www.brakebleeder.com/products...brake-bleeder/.

                              Using the OEM bleed nipple, you push fluid in though that forcing the air up and out through the reservoir. This process takes about 10 seconds as opposed to trying to suck the air downwards by vacuum.
                              '08 Goldwing Lvl 3
                              '12 Aprilia Tuono V4 APRC
                              '08 KTM 300XCW
                              '07 Ducati 1098S
                              www.gl1800visor.com

                              Comment: (For off-topic replies)


                              • #16
                                Originally posted by JeffP View Post
                                Got a link to Bulldog's site? Just a tip on the SpeedBleeders, I put them on my VT1300 last year after changing the brake lines to stainless braided and had lot's of issues and swearing as I could not get any fluid flowing. They will not work on a empty line or caliper. I ended up putting the stock bleeders back on and using my MityVac to flush and bleed the brakes. After all was good I reinstalled the SpeedBleeders and they worked fine.


                                http://www.shop.shinhopples.com/

                                Comment: (For off-topic replies)


                                • #17
                                  Bumb to thanks ChrisE again for this post. Just got done installing my SpeedBleeders then doing my bi-annual brake flush/bleed. I did like Chris and first replaced all the bleeders in the propper sequence. However, unlike Chris my first two bleeders leaked quite a bit of fluid then after that all the others didn't leak a drop. Could that have been the way I had the handle bars positioned or I over filled last time?

                                  After I had all the bleeders replaced the actual bleed went great. It sure was nice just to be able to pump the lever while watching the fluid level & color of the fluid as it went into the SpeedBleeder bag.

                                  Will do the clutch later when I have the cowl off for my coolant change.

                                  Dan
                                  2007 dark blue Navi
                                  Traxxion "Mega Monty"
                                  IBA 54656

                                  Comment: (For off-topic replies)


                                  • #18
                                    All I find searching for Bulldog brake parts is bicycle brakes- Gold-Winger, if you could point us toward a website we'd appreciate it!

                                    Comment: (For off-topic replies)


                                    • Winger01
                                      Winger01 commented
                                      Editing a comment
                                      shinhopples.com

                                      Just got off the phone with them and had my order placed. Good people to do business with.
